Description

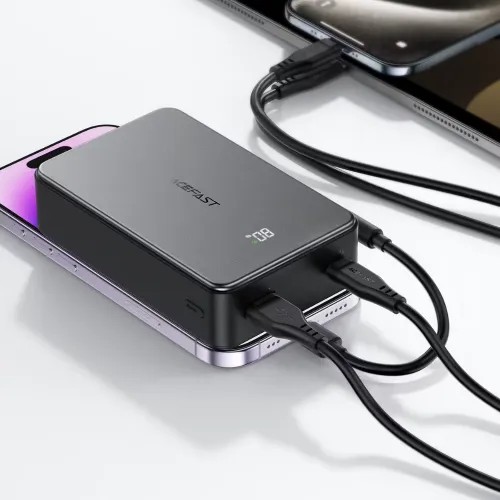

Acefast M29 22.5W 20000mAh Power Bank With Type-C Cable
The Acefast M29 22.5W 20000mAh Power Bank With Type-C Cable delivers high-capacity backup with fast charging for compatible devices. Its 20000mAh capacity provides 77Wh of stored energy, while the rated capacity reaches 11000mAh. The lithium polymer battery uses flame-retardant PC housing for added protection. This configuration supports extended device use during travel, work sessions, commutes, and other situations where wall power is unavailable.
22.5W Power Delivery
The Acefast M29 power bank supports up to 20W through each USB Type-C output, with PD3.0, PPS, QC4+, and other protocols. USB-A reaches 22.5W and supports QC3.0, AFC, FCP, and SCP charging standards. Dual-port use provides 15W total, while three-port operation supplies 15W at 5V⎓3A. These output options help users charge compatible phones, tablets, earbuds, and other USB-powered devices.

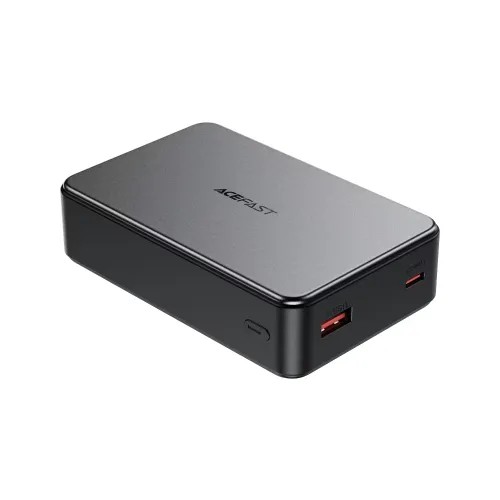

Port Configuration
Two USB Type-C ports support 18W input, allowing flexible recharging options from compatible adapters. The USB-A output reaches 22.5W, while USB Type-C outputs reach 20W individually. With support for multiple charging protocols, Acefast M29 20000mAh Power Bank can charge different devices efficiently. Users can select a suitable port according to device requirements, charging protocol, and available power.

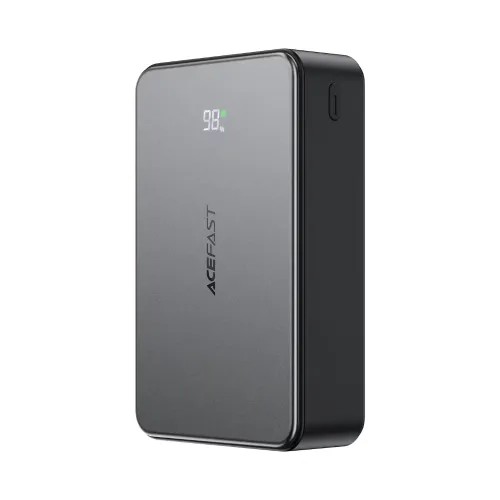

Compact Design
Measuring 107.1 by 68.7 by 27.7mm, the Acefast M29 power bank offers a compact form for a 20000mAh power bank. Its 319g weight includes the supplied Type-C cable, simplifying transport and storage. Certifications include CCC, CE, FCC, RoHS, EAC, and UN38.3, supporting broad compliance requirements. The compact dimensions also help it fit into bags, backpacks, and accessory compartments without occupying excessive space for convenient daily carry.
Specification
- Capacity
- 20,000mAh total capacity with a rated output of 11000mAh
- Interface
- USB Type-C, USB Type-A
- Button
- Yes
- Display
- Yes
- Fast Charging Protocol
- (PPS / PD3.0 / PD2.0 / QC4+ / QC3.0 / QC2.0 / AFC / FCP / SCP).
- Others
- Certifications: CCC, CE, FCC, RoHS, EAC, UN38.3
- Dimension
- 107.1 × 68.7 × 27.7mm.
- Weight
- 319g
- Color
- Black
- Material
- Flame-retardant PC + lithium polymer batteries.
- Warranty
- 03-month warranty (Must Claim With Box & All Accessories)
- Input: USB-C1 port: 5V⎓3A, 9V⎓2A, 12V⎓1.5A – 18W max. USB-C2 port: 5V⎓3A, 9V⎓2A, 12V⎓1.5A – 18W max.
- Output: USB Type-C1 port: 5V⎓3A, 9V⎓2.22A, 12V⎓1.67A – 20W max (PPS / PD3.0 / PD2.0 / QC4+ / QC3.0 / QC2.0 / AFC / FCP / SCP). USB Type-C2 port: 5V⎓3A, 9V⎓2.22A, 12V⎓1.67A – 20W max (PPS / PD3.0 / PD2.0 / QC4+ / QC3.0 / QC2.0 / AFC / FCP / SCP). USB-A port: 5V⎓3A, 9V⎓2A, 10V⎓2.25A, 12V⎓1.5A – 22.5W max (QC3.0 / QC2.0 / AFC / FCP / SCP). USB Type-C1 port + USB-C2 port: 7.5W + 7.5W – 15W max. USB Type-C1 port + USB-A port: 7.5W + 7.5W – 15W max. USB Type-C2 port + USB-A port: 7.5W + 7.5W – 15W max. USB Type-C1 port + USB-C2 port + USB-A: 5V⎓3A – 15W max.
- Protection: short-circuit protection, over-temperature protection, over-current protection, input over-voltage protection, battery overcharge protection, battery short-circuit protection, and auto-recovery protection
